Tokens Per Paper: DocLang vs Docling vs Raw PDF for Feeding Research Papers to an LLM

I spent an evening finding out what it actually costs to feed a research paper to a language model, and whether DocLang — the new "AI-native markup for documents" — earns its place in that pipeline. Short version: DocLang is a real format with a real idea in it, but it belongs upstream of the embedder, never inside the vector. On a stock tokenizer it costs 2.7× markdown for the same paper. The cheapest, cleanest input I measured was docling's structured text with the bibliography and journal template cut out — 13,483 tokens for a paper whose raw PDF extraction was 27,856.

Every number below is measured, not estimated. The test documents were a 23-page Nature paper (A multi-agent system for automating scientific discovery, 17.8 MB) and, as a second data point, the 8-page Docling technical report from arXiv.

Why I cared

I run a small paper-briefing pipeline on the side. It takes arXiv and journal PDFs, sends the link to OpenRouter, lets a free DeepSeek R1 model summarize the paper, and stores the summary in Hasura. It works, and on a free model it is invisible how wasteful it is. The moment I thought about switching the summarizer to Claude or GPT, the question became: how many tokens am I paying for per paper, and how many of them are doing anything?

DocLang showed up in my feed the same week, pitched as the format that "maps cleanly to LLM tokens while preserving structure, semantics, layout, and geometry." That sounded like exactly the thing, so I tested it.

What DocLang actually is

Not an embedding format. It is an XML-like markup language (Apache-2.0, under LF AI & Data). The doclang package on PyPI is lxml plus typer: a spec, an XSD, Schematron rules, and a packager. No ML, no PDF parsing. The parsing is docling's job; DocLang is one of docling's serializers:

PDF --docling--> DoclingDocument --docling_core.serializer.doclang--> .dclg --doclang pack--> .dclx

The interesting part is how it encodes geometry. There are no vectors anywhere. DocLang writes layout position directly into the tokenizer's vocabulary. Each bounding box is normalized to the page, scaled by a resolution (default 512), rounded, and emitted as <location value="N"/>, which the spec intends to be one literal vocab token. A bbox is four of them.

The spec is explicit about the trade-off: one token per concrete value for frequent elements (<location> burns 512 vocab slots), split tokens for rare ones like thread ids, to cap vocabulary growth. Total special vocabulary is 617 tokens: 105 structural plus 512 location.

Converting the Nature paper took 55.4 seconds on CPU and produced a 279 KB .dclg that passed XSD and Schematron validation. It contained 4,852 <location> elements, which is 63% of all structural tokens in the file.

The token bill depends on who reads it

I counted the same document four ways with tiktoken's o200k_base, once as a stock model would see it and once assuming DocLang's 617 special tokens were in the vocabulary.

DocLang's efficiency is conditional on the tokenizer. Claude, GPT, and every off-the-shelf model tokenize <location value="34"/> as roughly eight plain-text tokens, not one. The same file costs either 32K or 60K depending on who reads it, and nobody ships the DocLang vocabulary today. Even with the vocabulary, it is still 1.46× markdown, because the structural tags are real content the model has to attend over.

What happens to the figures

The default image mode is PLACEHOLDER: the Nature paper's 15 figures come through as <picture> elements with a bbox and no pixels. Text inside the figures survives, though. Every label, panel letter, and box caption is a nested <text> with its own coordinates: 796 fragments across 15 figures, and 62 from Figure 1 alone. A model can partially reconstruct a figure from that without ever seeing it.

Base64 pixels cost 47× the markup. Non-starter for a text model.

Packaging to .dclx is plain OPC, the same ZIP convention as .docx. Two things bit me, and both were real fixes rather than workarounds:

1. Asset directory name. The packer copies the contents of whatever you pass as --assets into assets/ unconditionally, so the serializer has to write image_dir=Path("assets") or every <src> dangles after packing.
2. Namespace. doclang pack --validate fails with "No matching global declaration available for the validation root" unless you serialize with DocLangParams(include_namespace=True). The validate command has an --allow-empty-namespace flag; pack does not.

After both, a small verifier confirmed 15 <src> references, 0 dangling, 0 orphans.

The retrieval test: PDF vs DocLang vs docling text

This was the question I actually started with: if I am building embeddings over papers, should the vector see DocLang? I built three indexes over the same document with the same model (all-MiniLM-L6-v2), the same 512-token window, and the same eight questions.

Lower mean cosine is better: it means the chunks sit further apart in the space and are easier to tell apart.

Raw PDF and DocLang tie on recall for opposite reasons. The raw PDF text from pypdfium2 has correct reading order (it handles the two-column layout fine) but is dirty: 9 running heads like Nature | Vol 655 landed mid-chunk, 110 glyphs came through broken (ques￾tion), and fixed 512-token striding cuts across section boundaries, so every chunk is a mush of several topics and they all look alike. That is the 0.460.

DocLang fails on dilution. Its chunks are clean and correctly bounded, but only a third of each window is content. Two thirds of the embedding budget goes to <location value="34"/> tokens the model has no representation for, and the shared markup vocabulary drags every vector toward a common direction.

Docling's structured text, chunked with its HybridChunker, wins all three axes: fewest tokens, fewest vectors, and the best-separated space. And the intuition that you need DocLang in the vector to get page citations back is wrong. Page and bbox come back as chunk metadata:

{
  "text": "…",
  "headings": ["Robin expedites hypothesis generation"],
  "prov": [{ "page": 3, "bbox": [34.0, 422.1, 255.3, 462.8] }]
}

That is from the index that embedded zero location tokens. Geometry belongs in the payload next to the vector, not inside it.

Ordering for retrieval: docling text > raw PDF > DocLang markup.

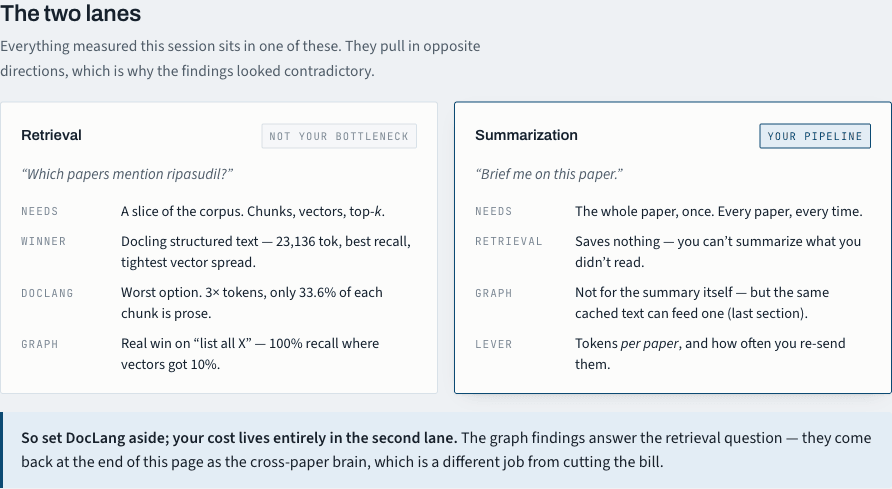

Then I realized retrieval was not my bottleneck

Everything above answers "which papers mention ripasudil?" That is not what my pipeline does. My pipeline does "brief me on this paper," for every paper, every time. You cannot summarize what you did not read, so retrieval saves nothing there. The only lever in that lane is tokens per paper, and how often you re-send them.

Once I separated the two lanes the findings stopped looking contradictory. DocLang was never going to help lane two either, so I set it aside and started counting where the summarizer's tokens go.

Where the tokens actually go

Docling gives every text item a section heading and a provenance, so I built a section graph straight from the DoclingDocument (no .dclg round trip, no graph library, about 60 lines) and classified sections by heading name.

Nearly two fifths of the paper is bibliography and journal template: the reference list, the Nature Reporting Summary checklist, antibody catalogue numbers, data and code availability statements. The summarizer is currently paid to read all of it.

Per 1,000 papers, using the measured ratios from the retrieval test for the other formats:

One caution on the aggressive profile. briefing over-trims: it drops "Validation of the Robin architecture," which is a results section and exactly the did-it-actually-work evidence a briefing needs. Name-based filtering cannot tell that apart from "Robin validation" in the methods. I am shipping content and leaving briefing off until it is a classifier rather than a regex.

Can retrieval replace the section filter for summarization?

I checked, because "aspect RAG" is the obvious counter-proposal: embed the chunks, ask six aspect questions (contribution, results, method, limitations, application, validation), and stitch the top hits into a context. At equal budget it loses.

The ten facts are things any faithful briefing of that paper must contain: the disease, the drug, the time saving, the three agent names, the assay, the target, the cell model, and a stated limitation. Aspect RAG at any k missed the same three: the drug, the target, and the limitation. Cheap, but you would ship a briefing that never names the compound the paper is about.

The "list all X" result

The one place vector search fell over completely was aggregative questions. "Every named agent in the system." "All drugs or compounds tested." "All statistical tests reported." These are not top-k questions; the answer is spread across dozens of items, and a five-chunk context catches a handful. Walking the section graph and filtering items is complete by construction.

On the shorter Docling report the graph scan hit 35/35 at 44% of the document's tokens, versus 18/35 for vector top-5 at 71%. The pattern held on both papers: for "every" questions, structure beats similarity, and it is not close.

What I am changing in the pipeline

In order. The first two are structural; the last two multiply against them.

1. Extract once and cache the text. Today the PDF link goes straight through to OpenRouter and gets re-extracted server-side on every retry, up to five times. On a free model that is invisible. On a paid model, one flaky paper bills several full reads for zero output. Caching the extracted text in Hasura kills the multiplier and also lets me A/B Claude, GPT, and Kimi on identical input.
2. Extract with docling, do_ocr=False. arXiv and journal PDFs are born-digital, so OCR is the slow stage and buys nothing. Turning it off took conversion from 55.4 s to 10.9 s per paper, and the output has 0 broken glyphs and 0 running heads versus 110 and 9 from the cheap server-side extractor. That alone is 22% fewer tokens.
3. Drop references and journal boilerplate. The content profile. 38% off the Nature paper, 23% off the arXiv one.
4. Gate on relevancy before spending premium tokens. I already score papers cheaply; promote only the top slice to a strong model and keep the free tier as tier one.

Three things that will bite, so I am writing them down:

• On the free model, none of this buys throughput. The daily quota counts requests, not tokens, and DeepSeek R1 free bills nothing per token. Halving tokens processes exactly the same number of papers. These savings only become money when I switch models.
• Output tokens become the floor. Summaries run 500 to 1,000 output tokens, and premium models charge a multiple for output. Input is about 90% of the bill today; after filtering it is about 68%. Past that, trimming input further stops mattering, so I am not going to over-engineer the filter.
• A regex from two papers will not survive thousands of venues. Section names vary. The right version classifies sections rather than matching heading strings, and logs every dropped section so mistakes are visible instead of silent.

The cross-paper brain, sketched

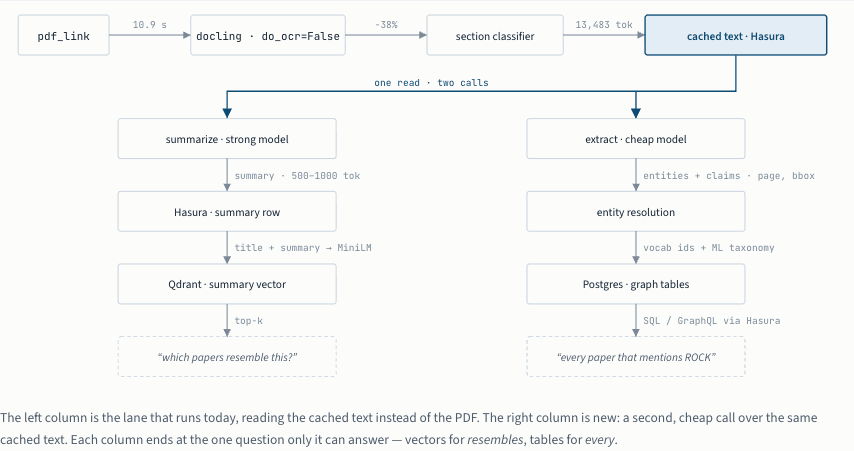

The graph results answer a different question than the token bill, but they point at what the pipeline could become once the extracted text is cached: one strong-model call for the summary, and a second cheap-model call over the same cached text to pull entities and claims with page and bbox.

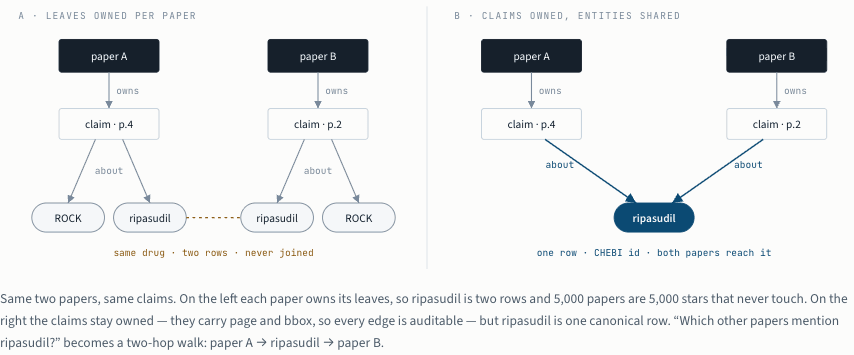

The schema detail I got wrong on the first pass: entities have to be shared across the corpus, not owned by the paper. If each paper owns its leaves, ripasudil is two rows in two papers and 5,000 papers are 5,000 stars that never touch. Keep the claims owned (they carry page and bbox, so every edge is auditable), but make the entity one canonical row that both papers reach. "Which other papers mention ripasudil?" becomes a two-hop walk.

Two gates before I build any of it: am I on a paid model yet (otherwise none of the dollar math applies), and do I have five real queries the graph answers that vectors cannot? Cache and filter now. Build the graph the day the first query shows up.

One gotcha worth knowing

Docling's HybridChunker can emit chunks that overflow the embedding window. Its token counter does include the heading prefix, but a table cannot be split below the budget; it serializes as one unit and passes through oversized. At the default max_tokens=256 one table chunk came out at 267 tokens and would have been silently truncated at embed time, losing its tail from the index. Size the chunker to the model's real window (512 for MiniLM) and assert on it:

n_tok = [len(tok.encode(r["text"], add_special_tokens=True)) for r in rows]
assert not [i for i, n in enumerate(n_tok) if n > WINDOW], "chunks would be truncated"

Caveats

• Two papers, 8 retrieval queries on one and 5 aggregative queries on each, one small embedder (all-MiniLM-L6-v2, 384-dim). The recall spread of 6 vs 7 is within noise at this N. The token and cosine gaps are not.
• All three retrieval arms missed the same question ("what drug did the system identify?" → ripasudil, which appears 27 times). That is an embedder limitation, not a format one.
• Token counts use o200k_base for the format comparison and the MiniLM tokenizer for the pipeline numbers. Claude's tokenizer differs; the ratios hold, absolutes shift a few percent.
• The page-image figure is the standard w×h/750 rule of thumb, not a measurement.

Versions

doclang 0.7.3, docling 2.124.0, docling-core 2.93.0, pypdfium2 5.13.0, tiktoken 0.14.0, torch 2.13.0, all on CPU on an Apple Silicon Mac. The experiment was about a dozen short scripts: convert, count, chunk, embed, three-way compare, section graph, aggregative query test, and the corpus cost model. If DocLang ships a tokenizer extension that a hosted model actually uses, the 2.74× number is the one to re-run first.
